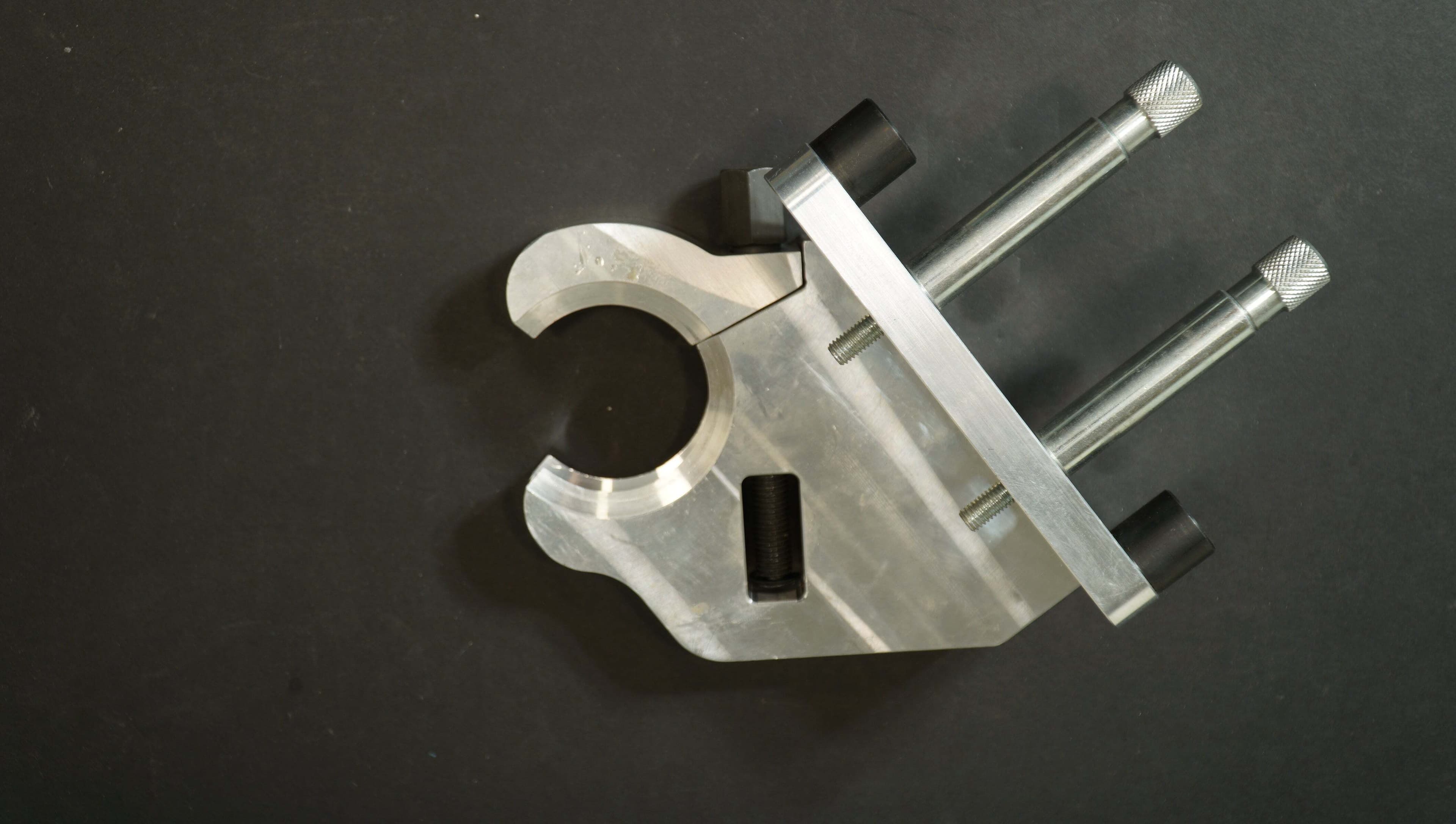

Volvo AC Compressor Bracket Alignment Tool

Used to align the A/C compressor bracket on Volvo SI6 engines. Please refer to Volvo literature for proper use, the correct torque sequence is REQUIRED for proper alignment. Please email SATR with your VIN if you require these steps. This tool is required any time the A/C compressor bracket is removed on an SI6 engine. Decoupler pulley replacement, transmission replacement, timing service, engine replacement.

OEM Part Number

9997262

Application Guide:

Volvo S80

, 2007–2014 S80 3.2 (B6324S / S2 / S4 / S5) A/C Compressor Adjustable Bracket Bolt

, 2008–2015 S80 T6 AWD (B6304T2 / B6304T4) A/C Compressor Adjustable Bracket Bolt

, Volvo V70

, 2008–2010 V70 3.2 (B6324S / S2) A/C Compressor Adjustable Bracket Bolt

, Volvo XC70

, 2008–2010 XC70 3.2 (B6324S / S2) A/C Compressor Adjustable Bracket Bolt

, 2009–2015 XC70 T6 AWD (B6304T2 / B6304T4) A/C Compressor Adjustable Bracket Bolt

, 2015 XC70 3.2 (B6324S4 / S5) A/C Compressor Adjustable Bracket Bolt

, Volvo XC60

, 2010–2014 XC60 T6 AWD (B6304T2 / B6304T4, incl. R-Design) A/C Compressor Adjustable Bracket Bolt

, 2015 XC60 3.2 AWD (B6324S4 / S5) A/C Compressor Adjustable Bracket Bolt

, 2015–2016 XC60 T6 AWD (B6304T4, incl. R-Design / Platinum) A/C Compressor Adjustable Bracket Bolt

, Volvo S60

, 2011–2014 S60 T6 AWD (B6304T4, incl. R-Design) A/C Compressor Adjustable Bracket Bolt

, 2015–2016 S60 T6 Polestar AWD (B6304T5) A/C Compressor Adjustable Bracket Bolt

, 2015–2016 S60 T6 AWD (B6304T4, incl. R-Design / Platinum) A/C Compressor Adjustable Bracket Bolt

, Volvo V60

, 2015–2016 V60 T6 Polestar AWD (B6304T5) A/C Compressor Adjustable Bracket Bolt

, 2015–2016 V60 T6 AWD (B6304T4, incl. R-Design / Platinum) A/C Compressor Adjustable Bracket Bolt
